Features
  No breaking out or drilling of concrete required, as it is a surface test

Simple and accurate testing by sponge insert type sensor

A reference block ensures the reliability of test result

Display hold function

Automatic power off to save battery

4 hours operation by rechargeable batteries

Low battery status display

Rugged aluminum case & carrying pouch

Easy to carry in a rugged aluminium bag

The corrosion of steel in concrete is an electro-chemical process which creates a current flow causing metal to dissolve so that it is possible to assess the probability of reinforcement corrosion by evaluating the electrical resistance of the concrete. The factor is measured in terms of resistivity and expressed in Ohm.
The resistivity of concrete varies over a complete structure due to a variety of changing site conditions from day to day so that other methods, like half-cell potential or impact testing, should be combined to ensure the data. Generally, the probability of the steel corrosion increases, the concrete resistivity deceases.
One of the practical problem of concrete resisitivity testing is to ensure the good electrical contact between the electrodes and concrete surface. In Resitest-400, Sponge insert type sensor is used for good electrical contact. Resitest-400 is supplied with Wenner sensor,carrying pouch, reference block, connection cable, AC adaptor, sensor cleaning bottle, insert sponge, aluminium bag and instruction manual.

Resitest-400 electrical circuit for measuring concrete resistivity

Resitest-400 Kit

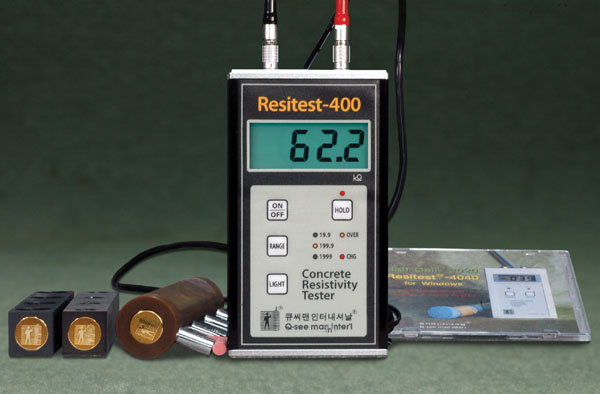

  Resitest-400 main body

Wenner sensor

Insert sponge (8 pcs)

Connection cable

Reference Block

Sensor cleaning Bottle

Carrying pouch

AC adaptor for rechargeable battery

Aluminium carrying bag

Instruction manual

Specifications of Resitest-400
  Measuring Method: Concrete resistivity testing by Wenner array sensor (50mm spacing)

Measuring Range: 0 2,000 k

Display: 3 1/2 digit LCD

Resolution: 1 k

Display Stability: 1 k

Input impedance: 100 M

Automatic Shut-Off: After 5 minutes without use

Hold Function: Hold the display

Display Function: Low Battery and Hold status

Power: 12V (1.5V x 6 rechargeable batteries)

Battery Life: About 5 hours

Operating Temperature: -10~50

Size: 1638941mm

Weight: 750 grams (main body including battery)

Warranty: one year

 R-1 type

W-2 type

HM-3 type






Concrete Resistivity Inspection. using RT-4000
